Basic Info.

Model NO.	2880mm
Sheet Former Type	Cylinder Mould
Paper Thickness	Normal Specification Paper
Automation	Automatic
Certification	ISO
Customized	Customized
Condition	New
After-sales Service	12 Months
Raw Material	100% Recycle Paper
Capacity	50t/D
Installation	Engineers Will Be Sent to Install
Name	DC-2880mm High Strength Fluting Paper Making Machi
Transport Package	National Standard
Specification	2880mm
Trademark	Dingchen
Origin	Qinyang City, Henan Province
HS Code	84392000
Production Capacity	50t/D

Packaging & Delivery

Package Size5800.00cm * 650.00cm * 700.00cm Package Gross Weight370000.000kg

Product Description

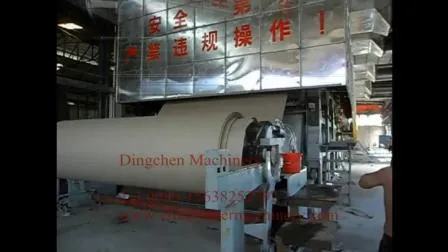

DC-2880mm Kraft Liner Paper Corrugated Paper Fluting Paper Making MachineSolution
I. Technical parameter 1.Raw materials: waste paper 2.Output paper: carton paper,liner paper 3.Output paper weight:100-200 g/m2 4.Capacity: 50 T/D 5.Working speed: 110-120m/min 6.Designing speed:160m/min 7.Rail gauge: 3800mm 8.Drive way: Alternating current frequency converter speed control, sectional drive.II. The main structure and Equipments1.Cylinder part: Ф1500mmx 3350mm stainless-steel plate cylinder, 4pcs; Φ450mm×3350mm couch roll,5 pcs,including one reverse roll; 2.Squeeze part: Φ400mm×3450mm squeeze roll,2 pcs, pneumatic loaded device3.Pre-press part: Φ650mm×3350mm top roll,one pcs of natural marble stone roll; Φ600mm×3350mm bottom roll, one pcs of rubber roll; pneumatic loaded device4.Press part :Φ850mm×3350mm, 2 pcs of natural marble stone rolls ; Φ800mm×3350mm rubber roll,2pcs; pneumatic loaded device5.Dryer part: Φ1500mm×3350mm alloy dryer can 12 pcs, 12 sets of blades6.Calendaring part: Φ450mm×3350mm calendaring roll,2 pcs.7.Reeling part: 2880 horizontal pneumatic reeler, winding cylinder(Φ1100mm×3100mm)8.Rewinding part: 2880 frame-type rewinding machine

Company:
we are a professional paper machine manufacturer,here,you can get the whole production line, we promise you good solution cause that is what we pursue.so welcome to visit and negotiate.


Perfect service: 1.technical consultation 2.Plant design 3.installation and test run 4.training engineers and workers 5.good and long time after-sale service The business process 1.send your requirements:raw material,capacity,paper grammage 2.we make the solution to you 3.come visit and negotiate 4.sign contract 5.first payment 6.production 7.pay spare money 8.delivery 9.installation ,training,test run 10.production consultlation We have a large scale of products regarding paper machinery, including: A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.) B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.) Meet customers' requirements and exceed customers' expects. We wish to found long-termcooperation with your company.
