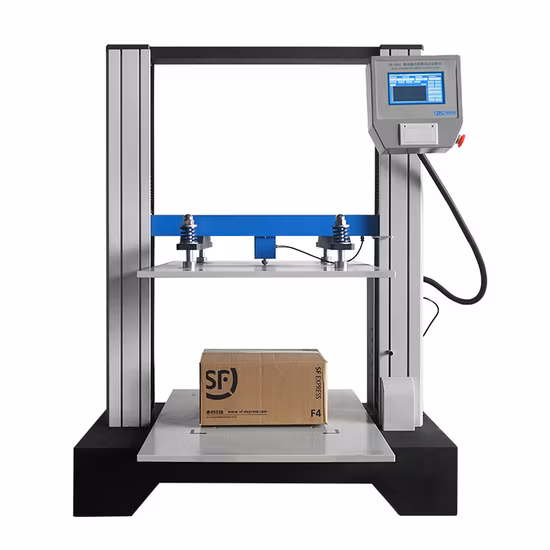

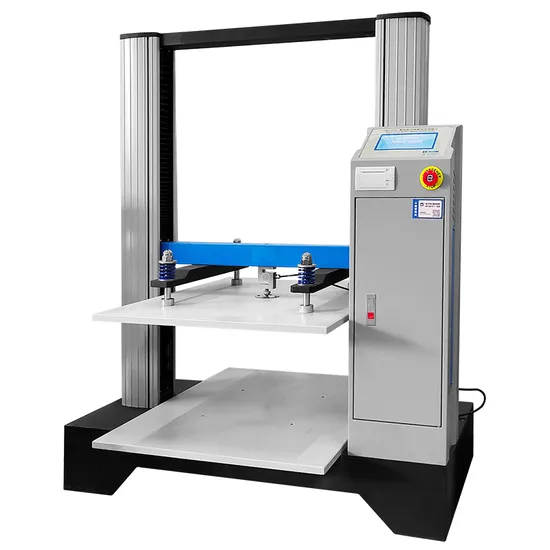

Microcomputer Control Corrugated Carton Paper Box Compression Testing Machine

Basic Info.

Model NO.	HD-A501-900
Display	Display Method
Control	PLC Control
Weight	100-500Kg
Power Source	AC220V
Motor	AC Motor, Guild Rod
Control System	PLC Control
Test Speed	10 ±3mm/Min
Effective Test Area	700×900×900mm
Max. Force	1000kg
Load Cell	1 Load Cell
Product Name	Carton Compression Testing Machine
Transport Package	Strong Wooden Case
Specification	TAPPI-T804, JIS-2012, GB4857.3.4, ASTM-D642
Trademark	HAIDA
Origin	Dongguan, China
Production Capacity	150 Sets/Month

Product Description

Microcomputer Control Corrugated Carton Paper Box Compression Testing Machine
Usage:PLC(programmable logic controller) Compression Test Machine For Package Test is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
Design Criteria: TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16,GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4 The Main Parameters:

Item	Description
Max. Force	1000KG
Load cell	1 load cell
Control system	PLC control
Motor	AC motor, guild rod
Force reading	kgf, Ibf, N etc
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±5mm
Effective test area	700×900×900mm
Test speed	10 ±3mm/min
Report output	Mini-printer, thermal printing
Data display	Load, displacement, speed
Safety features	E-StopOver-load protectionUpper and lower limit switches

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Product Detail
About HAIDA
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Packaging & Shipping:Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.After-service:If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
